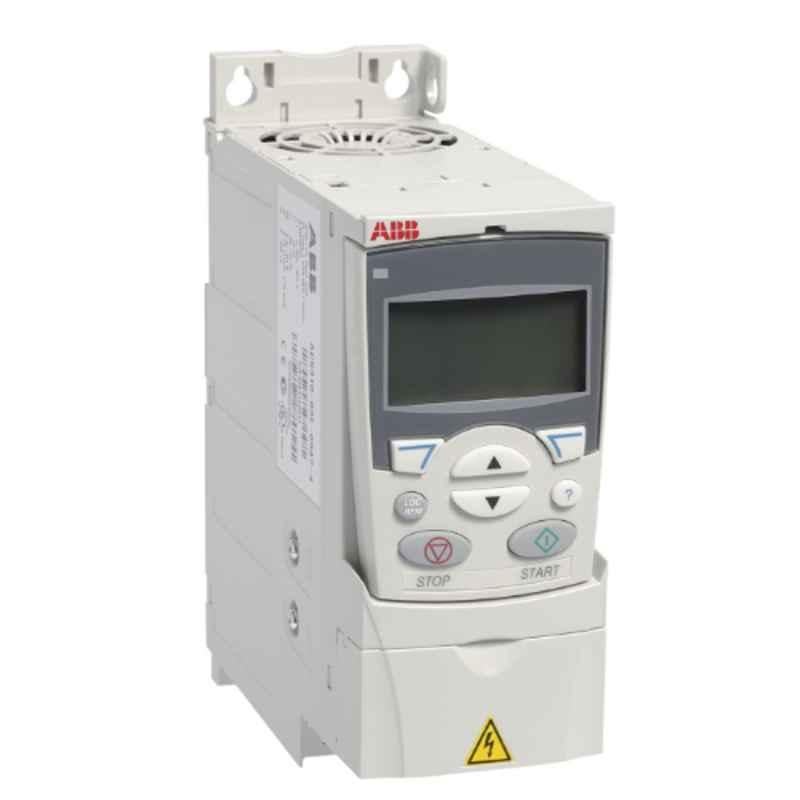

ABB 4kW 5HP 3 Phase General Purpose Drive, ACS310-03E-09A7-4
ABB 4kW 5HP 3 Phase General Purpose Drive, ACS310-03E-09A7-4
ABB 4kW 5HP 3 Phase General Purpose Drive, ACS310-03E-09A7-4

Hover to Zoom

ABB 4kW 5HP 3 Phase General Purpose Drive, ACS310-03E-09A7-4

Check for price and availability.

₹21,981 (Incl. of all taxes)

₹18,627+₹3,354 GST
MRP ₹62,938 65% OFF

Min Orderable Qty : 1 Pack

Available on Request

More From Micro DrivesVIEW ALL

Key features

  • Input Supply Voltage & Phase: 3 Phase 380 to 480V ± 10%.
  • Frame Size & Dimension (HxWxD): R1 & 169X70X161mm.
  • Control Panel & Display Unit: Basic Control Panel Comes as a Standard.
  • Motor Control Method: Scalar Control U/f.
  • Built-in Inputs & Outputs: 2AI/1AO/5DI/1RO/1DO.
  • EMC Filters: Integrated C3 EMC Filter.
  • Dynamic Braking: No Integrated Brake Chopper.
  • Maximum Continuous Output Current at Ambient Temp of 40 deg C-I₂ɴ(A): 9.7.
  • Continuous Output Current at Max Ambient Temp of 50 deg C-ILd(A): 8.8.

Product Specifications

BrandABB
Product Compliance

RoHS Compliant

EMC Directive 2004/108/EC

Machinery Directive 2006/42/EC

Environmental System ISO 14001

Low Voltage Directive 2006/95/EC

Quality Assurance System ISO 9001

UL, cUL, CE, C-Tick & Gost R Approvals

Options

Protection Options: Optional NEMA1 Enclosure

External Options: AC Input Choke, AC Output Choke, EMC Filter

Extension Modules: Relay Output Extension Module (Can Hold Optional 3 Relay Outputs)

Tools & Software: Flash Drop Tool, Drive Window Light, Remote Monitoring (Ethernet Adapter)

Control Panel Options: Basic Control Panel, Assistant Control Panel, Drive Derating Option from 40 to 50 deg C

Internal Protection

Coated Boards-Protects Electronics from Hazards

Applications

Pump, Fan, Wood Srying Kilns & Irrigation Systems

Supported Motor Types

Induction Motor

Module Weight

1.3 kg

Number of Phases

3

Power (HP)

5 HP

Auxiliary Output Voltage

24 V DC ± 10%, Max 200 mA

In Built Communication

Embedded Modbus EIA-485 Fieldbus

Overload Capability at Starting

1.6xI₂ɴ for 2 sec

Ambient Temperature

-10 to 40 deg C (No Frost Allowed)

Power (kW)

4 kW

Frequency Mains Connection

48-63 Hz

Overload Capability at Heavy Duty Use

1.1xILd for 1 min Every 10 mins

Country of origin

India

Degree of Protection

IP20

Switching Frequency

4 kHz Selectable

Mounting type

Wall Mounted

Speed Control Method

PID Control

Item Code

ACS310-03E-09A7-4

Output Frequency

0 to 500 Hz

RETURN POLICY

Upto 7 days
returnable
Wrong
Product
Damaged
Product
Defective
Product

Get Best Price

Add more details to get the best deal.

I don't know my pincode
Business Purchase

Product Information

ABB 4kW 5HP 3 Phase General Purpose Drive, ACS310-03E-09A7-4 is a premium quality product from ABB. Moglix is a well-known ecommerce platform for qualitative range of Micro Drives. All ABB 4kW 5HP 3 Phase General Purpose Drive, ACS310-03E-09A7-4 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture ABB 4kW 5HP 3 Phase General Purpose Drive, ACS310-03E-09A7-4, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. ABB products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of ABB Micro Drives .
